Chinese Professional Simple Installation Lamp - High Temperature Resistant Led Flood Light - Divided Body LED Waterproof Fitting – Jiatong – Jiatong Detail:

Feature



Description High quality opal PC cover and PC/ABS base offering IP65 protection against moisture, dust, corrosion and impact rating of IK08;
Long life energy SMD with constant current driver or linearity;
High luminous efficency, low power consumption;
Simple installation, no dark area, no noise.
Application Lighting for supermarket, shopping mall, restaurant, school,hospital, parking lot,warehouse,corridors and other public places



Specification



  EWS-118F EWS-218F EWS-136F EWS-236F EWS-158F EWS-258F
Input Voltage(AC) 220-240 220-240 220-240 220-240 220-240 220-240
Frequency(Hz) 50/60Hz 50/60 50/60 50/60 50/60 50/60
Power(W) 12 24 24 48 36 72
Luminous Flux(Lm) 1100 2200 2200 4400 3400 6800
Luminous Efficiency(Lm/W) 100 100 100 100 100 100
CCT(K) 3000-6500 3000-6500 3000-6500 3000-6500 3000-6500 3000-6500
Beam Angle 120° 120° 120° 120° 120° 120°
CRI >80 >80 >80 >80 >80 >80
Dimmable Yes Yes Yes Yes Yes Yes
Surrounding Temperature -20°C~40°C -20°C~40°C -20°C~40°C -20°C~40°C -20°C~40°C -20°C~40°C
Energy Efficiency A+ A+ A+ A+ A+ A+
IP Rate IP65 IP65 IP65 IP65 IP65 IP65
Size(mm) 655*105*110 655*165*110 1265*105*110 1265*165*110 1565*105*110 1565*165*110
N.W.(Kg) 1kg 1.4kg 1.7kg 2.4kg 1.8kg 2.6kg
Certification CE/ RoHS CE/ RoHS CE/ RoHS CE/ RoHS CE/ RoHS CE/ RoHS
Adjustable angle No
Installation Surface mounted/Hanging
Material Cover: Opal PC
Base:PC/ABS
Guarantee 3 Years



Size

EWS-F尺寸图

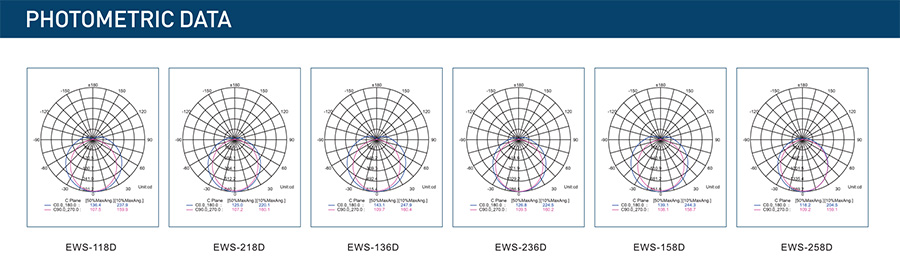

EWS-F配光图





Optional Accessories



Micro wave motion sensor11
